Veterinary Ultrasound Scanner Machine

Description

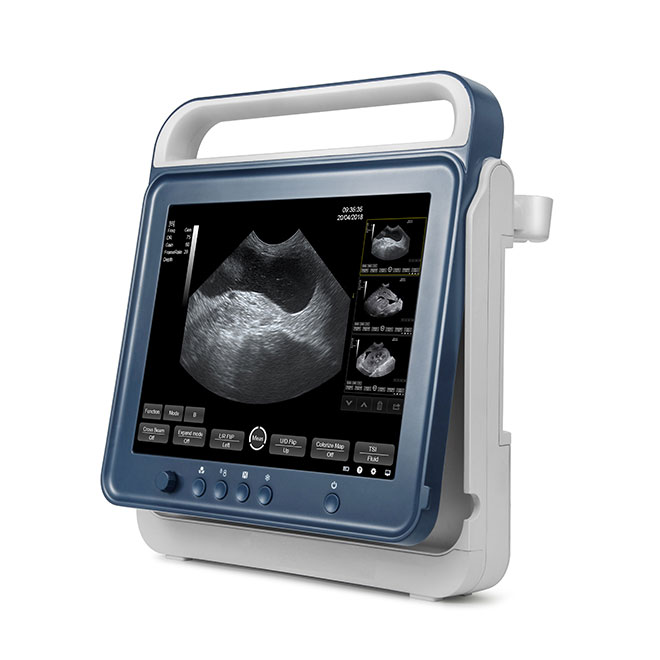

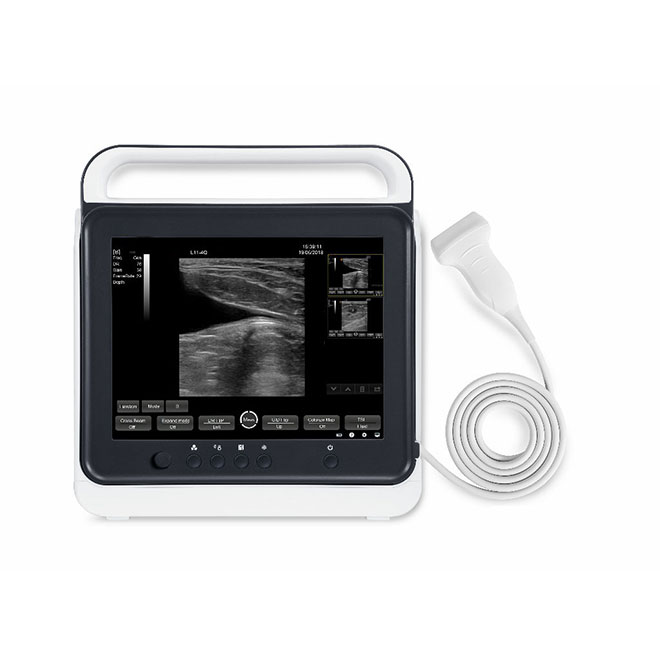

Touch Portable Veterinary Ultrasound Scanner Machine MSLVU40

Quick Details

System Dimension:
Height: 402 mm Width: 385mm Depth: 53mm

Weight:    Around 4.5 kg (Include Battery)

Materials of systems
Fireproofing and anti‐corrosion ABS

Specifications

Touch Portable Veterinary Ultrasound Scanner  Machine MSLVU40

System Dimension:

Height: 402 mm Width: 385mm Depth: 53mm

Weight:    Around 4.5 kg (Include Battery)

Materials of systems
Fireproofing and anti‐corrosion ABS

Monitor:
 15' ' high resolution LCD monitor with tilting to view it freely and comfortably
Resolution:  1024×768
Brightness Adjustable
Max Opening Angle:45°

Touchscreen:
Fully resistive touch screen

Transducer element:128

Power: System operates via AC power & battery

AC Adapter:
Model:MSL‐15AD
Voltage: 100‐240VAC
Frequency: 50/60 Hz
Currency: 5A
Output: 15V

Battery: (optional)
Model: LY606090
Lithium‐Ion, 11.1V ,7000mAH
Charge to Full: 6 hours
Max Duration: 180 minutes realtime scan *
vary on the configuration and different working condition, for more details to contact the sales.

Operating Evironment:
Temperature: 0‐40 °C
Humidity: 30%‐85% (non‐condensing)
Pressure: 700hPa‐1060hPa

Storage and Transport:
Temperature: ‐20‐55 °C
Humidity: 30%‐95%(non‐condensing)
Pressure: 700hPa‐1060hPa
